Chassis IlluminationSystem ws2812B serial LED tape

$20.00

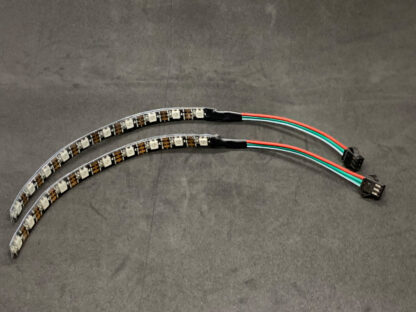

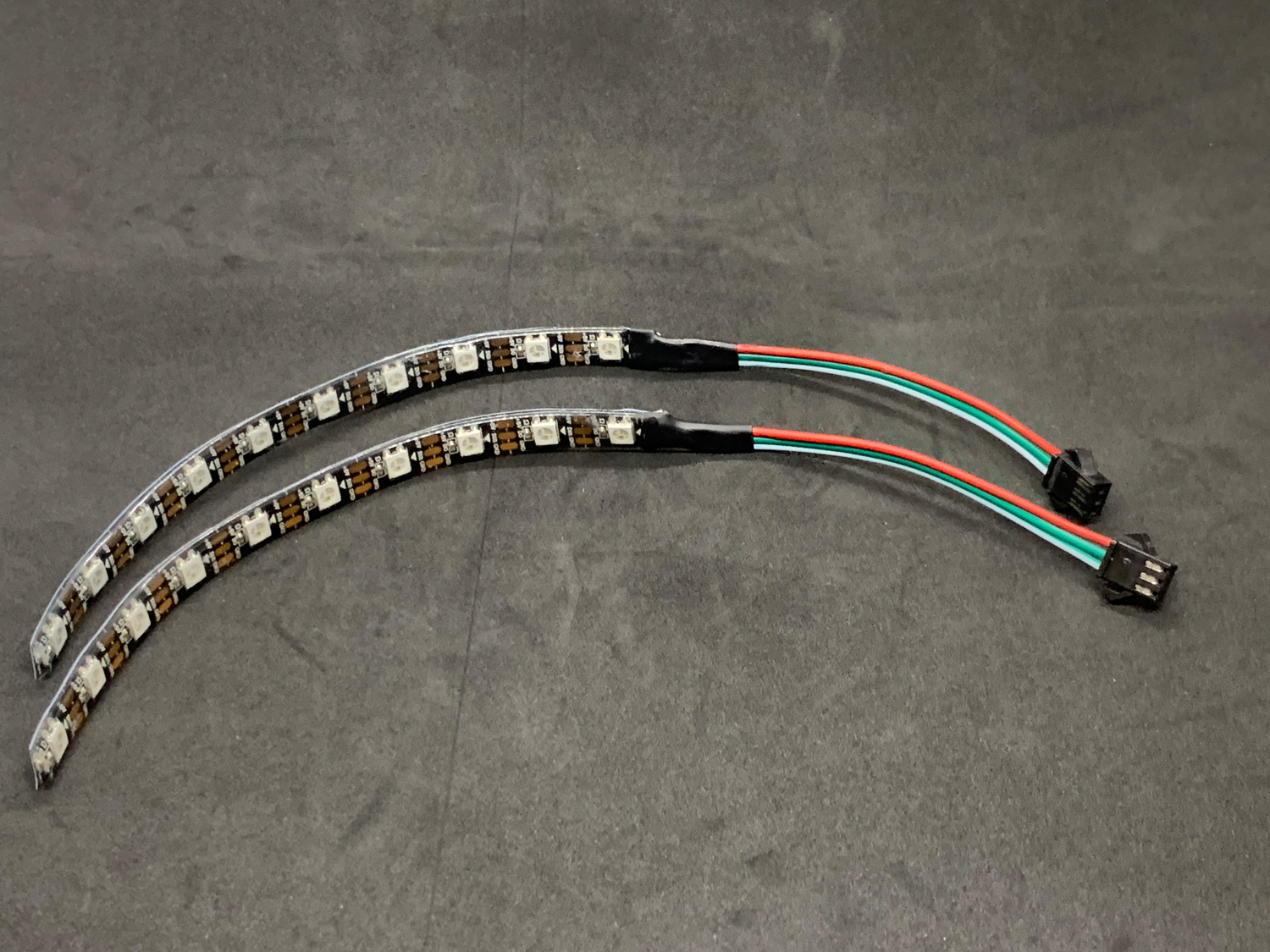

  • ws2812Bserial LED tape*2 set
  • one tape has 10 LED modules.



SKU: illuminationsystem02 Categories: , Tags: , ,

Description

ws2812Bserial LED tapes

Just connect to the LED controller. it has double side tape.
This product need to use  with an illumination controller

Sample program

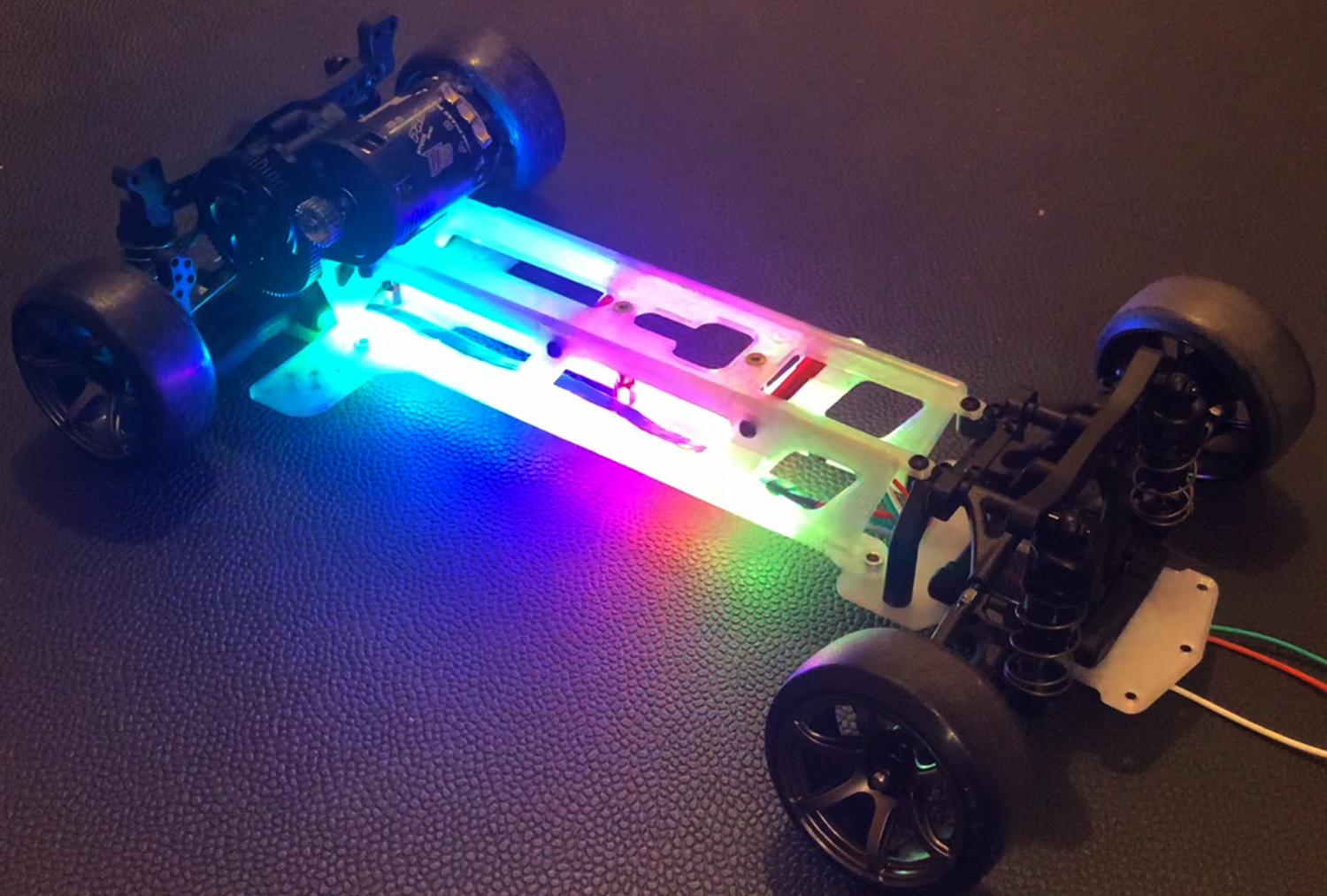

Rainbow effect for side lip or bottom light

library    Adafruit_NeoPixel.h

rainbowCycle   value    1-20

#include <Adafruit_NeoPixel.h>
#define PIN 6


#define NUM_LEDS 10

Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUM_LEDS, PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();
  strip.show(); // Initialize all pixels to 'off'
}

void loop() {
  rainbowCycle(1);
}

void rainbowCycle(int SpeedDelay) {
  byte *c;
  uint16_t i, j;

  for(j=0; j<256*5; j++) { // 5 cycles of all colors on wheel
    for(i=0; i< NUM_LEDS; i++) {
      c=Wheel(((i * 256 / NUM_LEDS) + j) & 255);
      setPixel(i, *c, *(c+1), *(c+2));
    }
    showStrip();
    delay(SpeedDelay);
  }
}

byte * Wheel(byte WheelPos) {
  static byte c[3];

  if(WheelPos < 85) {
   c[0]=WheelPos * 3;
   c[1]=255 - WheelPos * 3;
   c[2]=0;
  } else if(WheelPos < 170) {
   WheelPos -= 85;
   c[0]=255 - WheelPos * 3;
   c[1]=0;
   c[2]=WheelPos * 3;
  } else {
   WheelPos -= 170;
   c[0]=0;
   c[1]=WheelPos * 3;
   c[2]=255 - WheelPos * 3;
  }

  return c;
}


void showStrip() {
 #ifdef ADAFRUIT_NEOPIXEL_H
   // NeoPixel
   strip.show();
 #endif
 #ifndef ADAFRUIT_NEOPIXEL_H
   // FastLED
   FastLED.show();
 #endif
}

void setPixel(int Pixel, byte red, byte green, byte blue) {
 #ifdef ADAFRUIT_NEOPIXEL_H
   // NeoPixel
   strip.setPixelColor(Pixel, strip.Color(red, green, blue));
 #endif
 #ifndef ADAFRUIT_NEOPIXEL_H
   // FastLED
   leds[Pixel].r = red;
   leds[Pixel].g = green;
   leds[Pixel].b = blue;
 #endif
}

void setAll(byte red, byte green, byte blue) {
  for(int i = 0; i < NUM_LEDS; i++ ) {
    setPixel(i, red, green, blue);
  }
  showStrip();
}
