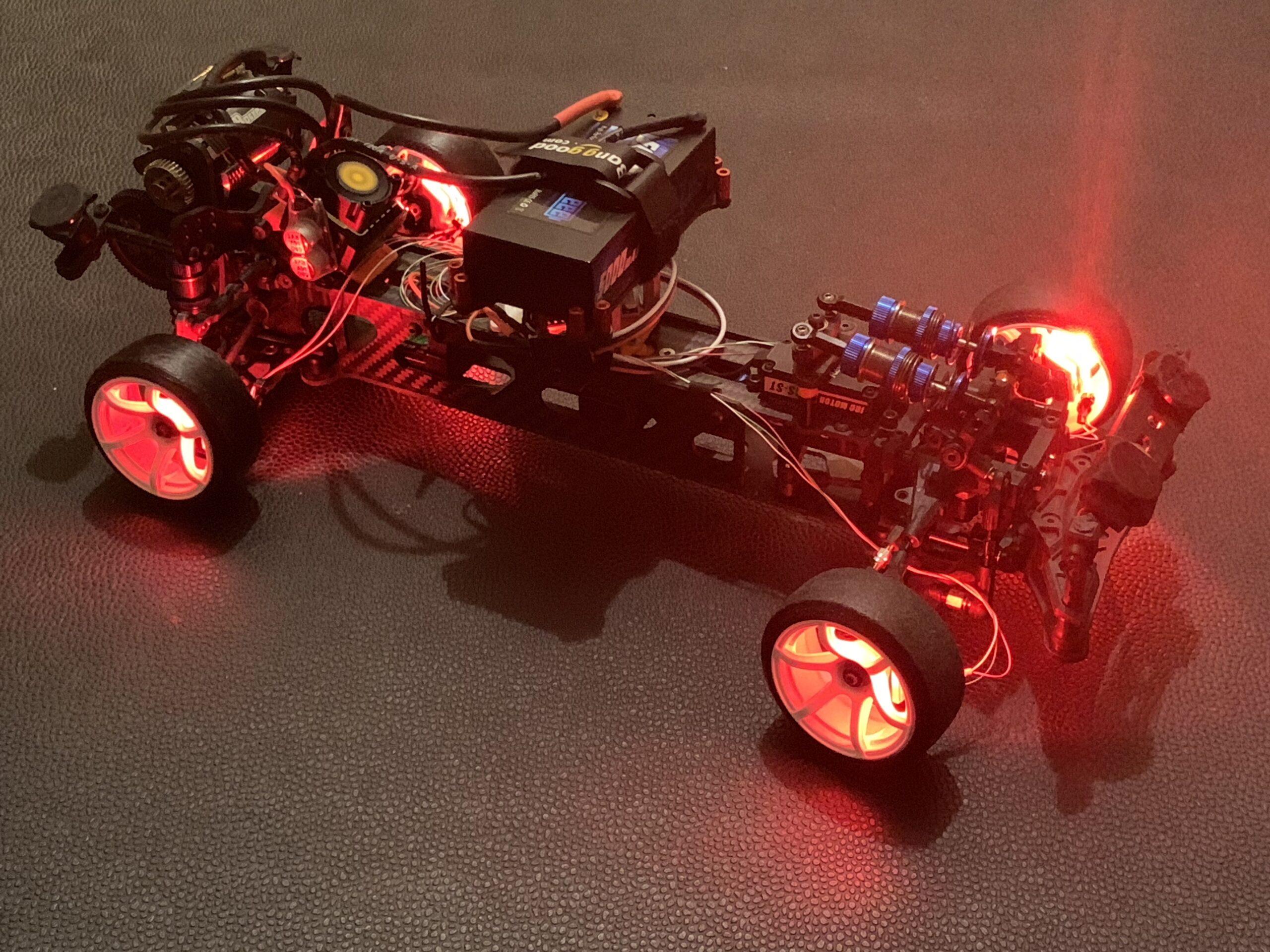

Inwheel illminationsystem for sakuraD5

$35.00

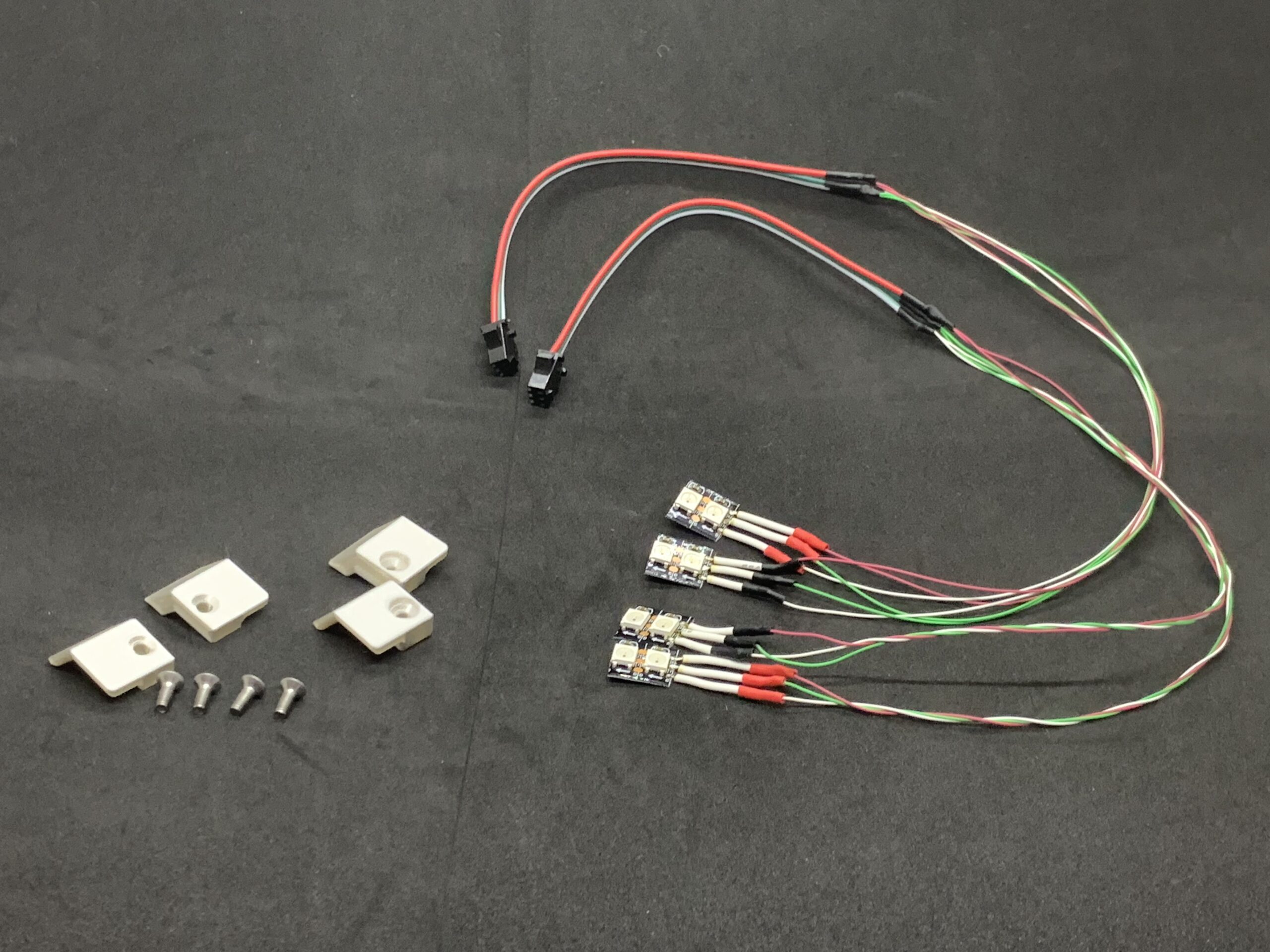

this kit comes with

  • ws2812Bserial LED in wheel unit  * 2
  • module 8 module
  • Hub LED blacket for sakuraD5
  • M3*8 counter sunk screw

SKU: illuminationsystem03 Categories: , Tags: , ,

Description

  • ws2812Bserial LED in wheel unit  * 2
  • module 8 module
  • Hub LED blacket for sakuraD5
  • M3*8 counter sunk screw

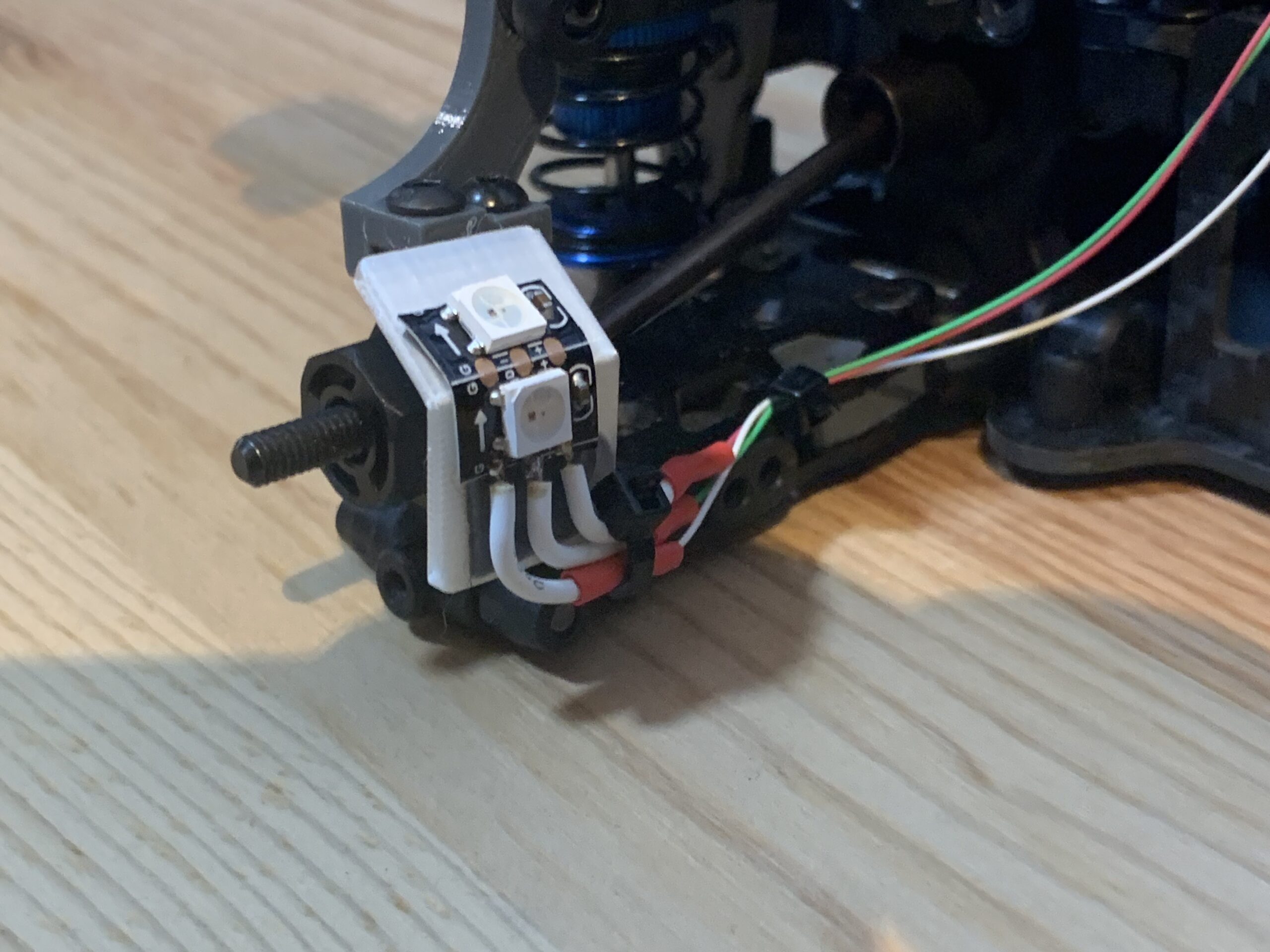

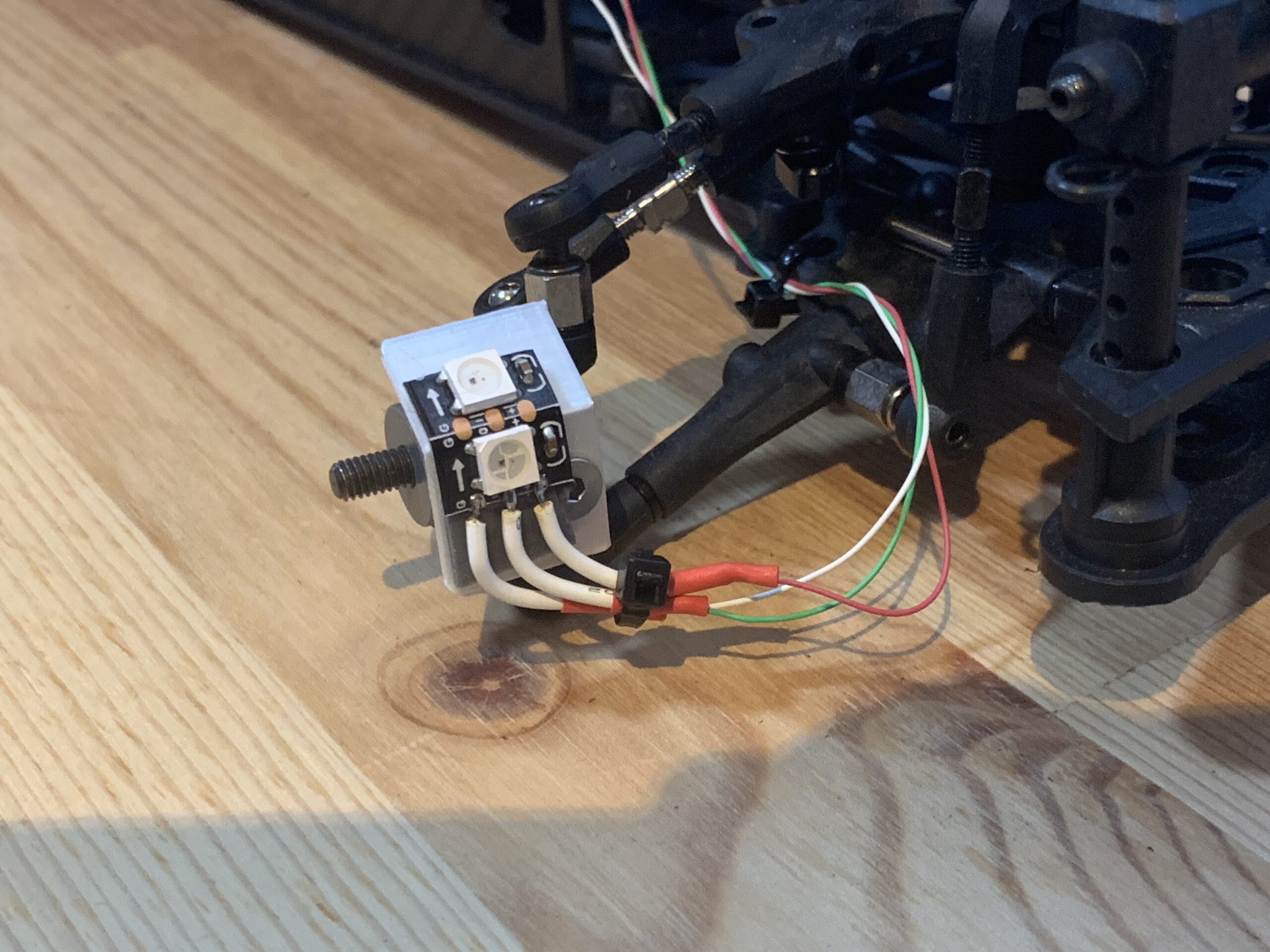

attach Hub bracket on each knuckle.
#please check F/LR  R/LR

This product need an illumination controller

Sample program

Inwheel illumination

library    Adafruit_NeoPixel.h

#include <Adafruit_NeoPixel.h>
#define PIN 6
#define NUM_LEDS 2
// Parameter 1 = number of pixels in strip
// Parameter 2 = pin number (most are valid)
// Parameter 3 = pixel type flags, add together as needed:
//   NEO_KHZ800  800 KHz bitstream (most NeoPixel products w/WS2812 LEDs)
//   NEO_KHZ400  400 KHz (classic 'v1' (not v2) FLORA pixels, WS2811 drivers)
//   NEO_GRB     Pixels are wired for GRB bitstream (most NeoPixel products)
//   NEO_RGB     Pixels are wired for RGB bitstream (v1 FLORA pixels, not v2)
Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUM_LEDS, PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();
  strip.show(); // Initialize all pixels to 'off'
}


void loop() {
  RGBLoop();
}

void RGBLoop(){
  for(int j = 0; j < 3; j++ ) {
    // Fade IN
    for(int k = 0; k < 256; k++) {
      switch(j) {
        case 0: setAll(k,0,0); break;
        case 1: setAll(0,k,0); break;
        case 2: setAll(0,0,k); break;
      }
      showStrip();
      delay(3);
    }
    // Fade OUT
    for(int k = 255; k >= 0; k--) {
      switch(j) {
        case 0: setAll(k,0,0); break;
        case 1: setAll(0,k,0); break;
        case 2: setAll(0,0,k); break;
      }
      showStrip();
      delay(3);
    }
  }
}



void showStrip() {
 #ifdef ADAFRUIT_NEOPIXEL_H
   // NeoPixel
   strip.show();
 #endif
 #ifndef ADAFRUIT_NEOPIXEL_H
   // FastLED
   FastLED.show();
 #endif
}

void setPixel(int Pixel, byte red, byte green, byte blue) {
 #ifdef ADAFRUIT_NEOPIXEL_H
   // NeoPixel
   strip.setPixelColor(Pixel, strip.Color(red, green, blue));
 #endif
 #ifndef ADAFRUIT_NEOPIXEL_H
   // FastLED
   leds[Pixel].r = red;
   leds[Pixel].g = green;
   leds[Pixel].b = blue;
 #endif
}

void setAll(byte red, byte green, byte blue) {
  for(int i = 0; i < NUM_LEDS; i++ ) {
    setPixel(i, red, green, blue);
  }
  showStrip();
}
